Flashlight Electronic Engineering: Decoding LED Drivers, MCPCBs, and SMT Assembly
[ Phase 01: Anatomy of the Brain ]
Hello, this is your Senior Electronics Engineer from SHENGQI LIGHTING. In the tactical gear community, operators frequently obsess over the exact bin of a semiconductor diode or the capacity of a lithium-ion cell. However, connecting a high-drain battery directly to a bare LED will result in instantaneous, catastrophic incineration. The unsung hero—the literal brain of the device—is the Driver Board.
The fundamental discipline of Flashlight LED Driver and PCB Engineering revolves around one core physical law: LEDs are non-linear devices. A minute fluctuation in forward voltage triggers an exponential spike in current. A premium flashlight constant current driver intercepts the raw, fluctuating voltage from the battery. Through highly calibrated Buck (step-down) or Boost (step-up) topologies, it continuously manipulates the electrical flow. This guarantees that the LED receives a perfectly flat, unwavering current, ensuring the tactical beam does not dim as the battery naturally depletes.
Today, we are initiating a deep-dive technical teardown. We will place the core surface-mount components under the microscope, evaluate the thermal physics of advanced substrates, and walk you directly onto our proprietary SMT assembly floor.
[+] Under the Microscope: Core Components
A driver board is a miniaturized power plant. Removing the epoxy potting reveals a dense topography of micro-electronic logic and power manipulation gates. Let us dissect the critical nodes.
[+] The Substrate Showdown: FR-4 vs. DTP Copper
The foundation upon which these components rest dictates the thermal survival of the instrument. When evaluating MCPCB flashlight manufacturing, procurement managers must match the substrate metallurgy to the specific lumen output.
[+] Inside the Dust-Free SMT Production Line
Theoretical circuit design must be executed flawlessly in physical reality. A modern SMT production line (Surface Mount Technology) is a symphony of extreme robotics and thermodynamic control. Step inside our dust-free facility:
Step 1: Solder Paste Printing & SPI
Bare PCBs are fed into a highly precise stencil printer. A squeegee applies lead-free solder paste over a stainless-steel laser-cut stencil. Immediately after, an SPI (Solder Paste Inspection) machine uses 3D laser topography to verify the exact microscopic volume and alignment of the paste. A fraction of a millimeter deviation will result in a rejected board.
Step 2: High-Speed Pick & Place
The boards enter the robotic mounter. Utilizing high-speed pneumatic nozzles and internal machine vision cameras, the robot extracts microscopic 01005-sized capacitors and complex MCU chips from a reel, firing them onto the wet solder paste with micron-level accuracy at speeds exceeding 50,000 components per hour.
Step 3: Nitrogen-Shielded Reflow Soldering
The populated boards traverse a massive, multi-zone reflow oven. Inside, the atmosphere is purged with inert Nitrogen gas to prevent high-temperature oxidation. The thermal profile gradually ramps up to a peak of precisely 217°C (the melting point of SAC305 lead-free solder), permanently metallurgical bonding the components to the copper traces without subjecting the silicon chips to thermal shock.
Step 4: AOI (Automated Optical Inspection)
Human eyes cannot verify thousands of microscopic solder joints. Every completed driver board exits the oven and enters an AOI machine. High-definition cameras and Artificial Intelligence (AI) algorithms scan the board, instantly flagging any tombstones, solder bridges, or missing resistors before the board is cleared for final tactical assembly.
Secure Your Electronic Architecture

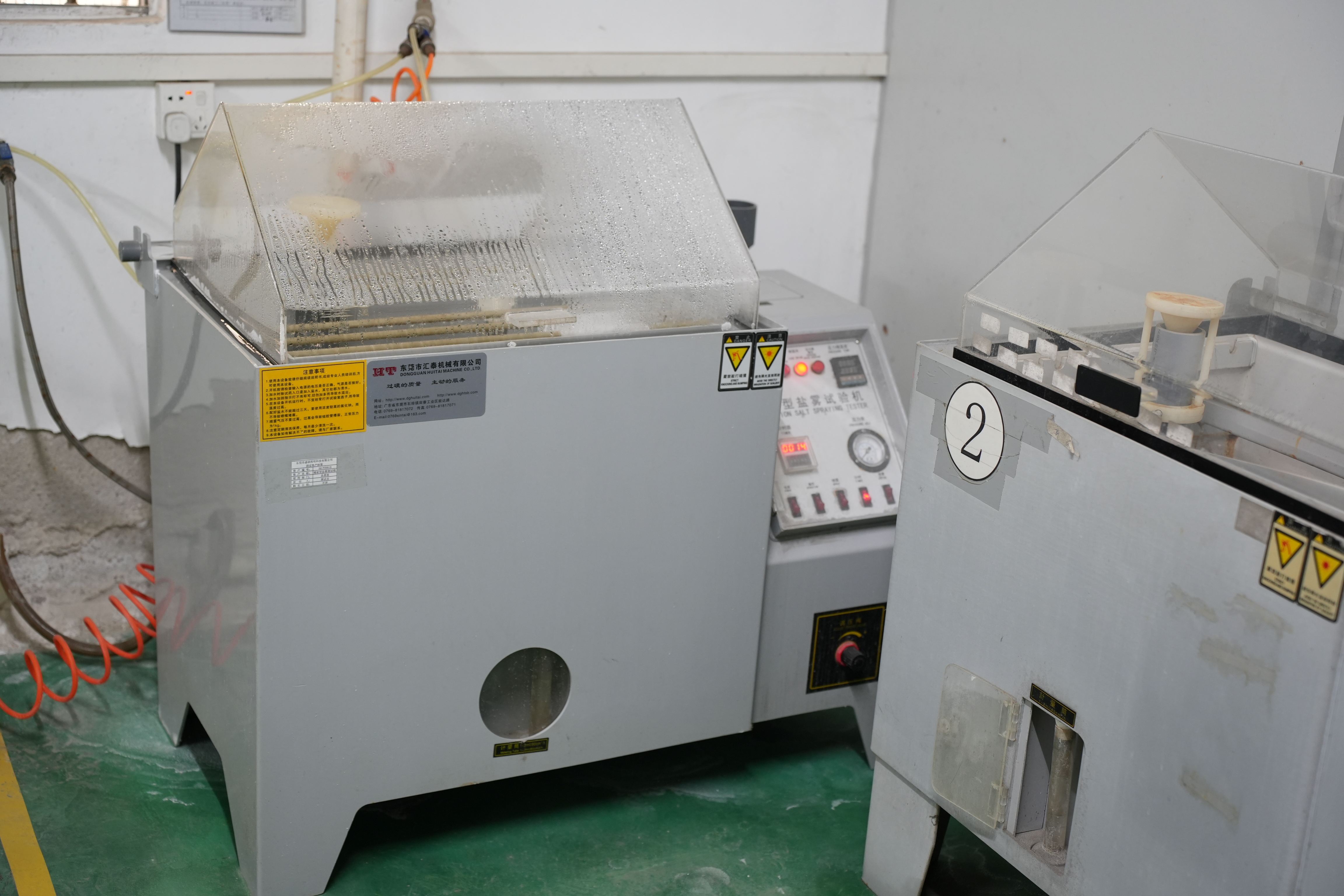

Relying on generic, catalog driver boards introduces severe operational liability to your tactical brand. As an elite Custom flashlight PCB OEM, SHENGQI LIGHTING possesses the independent laboratory infrastructure required to engineer bespoke micro-electronics.
[ Initiation of R&D Partnership ]
We formally invite global procurement directors to leverage our dedicated Flashlight OEM/ODM Manufacturer capabilities. Our R&D division will execute rigorous PCB Layout design, custom UI firmware programming, and 100% automated SMT assembly tailored precisely to your operational requirements.
