The Science of Flashlight Manufacturing: CNC Machining, Die Casting, and HA III Anodizing
Hello, this is your Senior Manufacturing Engineer from SHENGQI LIGHTING. In the global procurement landscape, buyers frequently encounter a bewildering pricing paradox. Two illumination tools may present identical external geometries and lumen specifications, yet one commands a $50 premium while the other wholesales for $5. The fundamental divergence lies entirely within the invisible realm of metallurgical engineering and subtractive manufacturing.

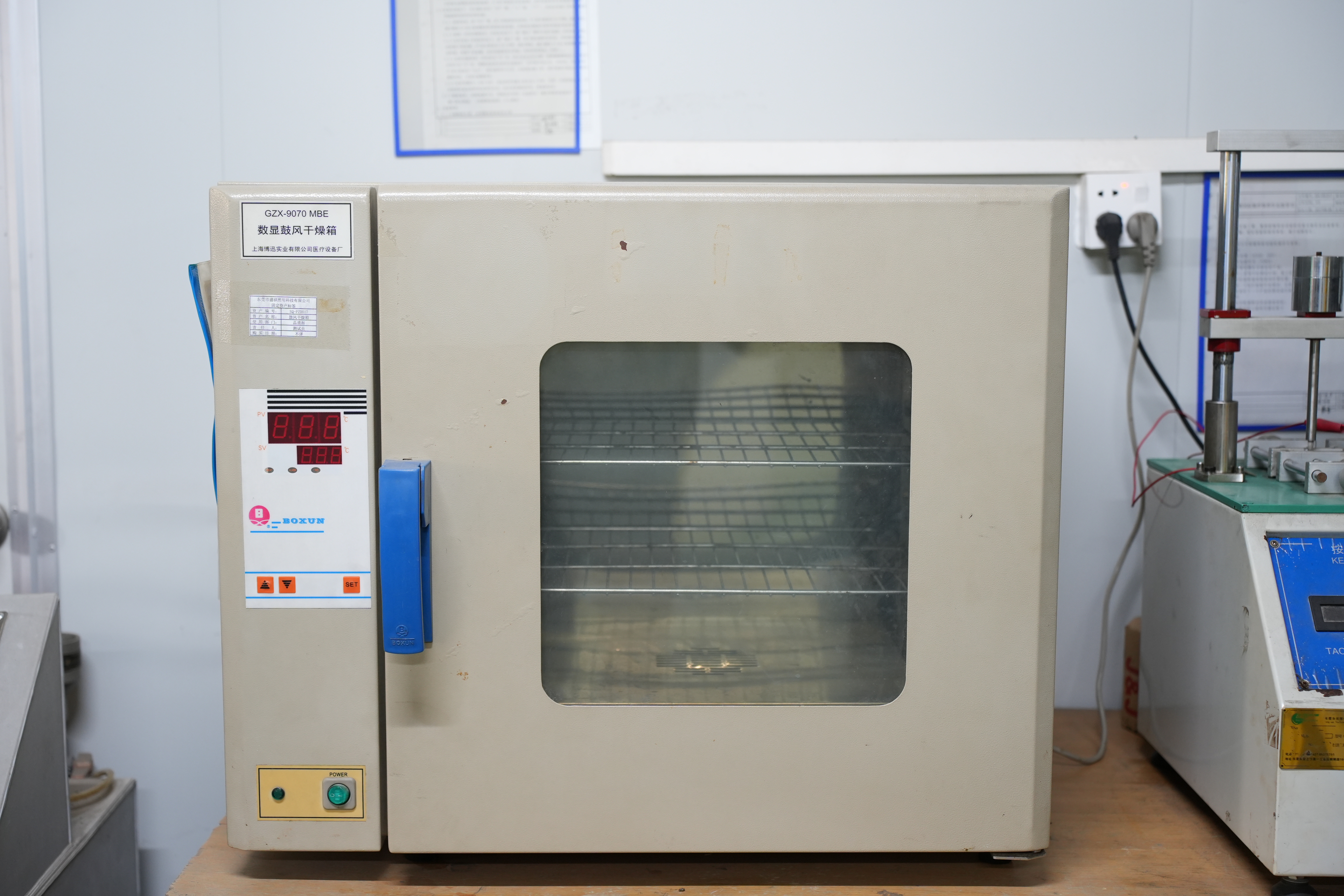

A professional illumination device is subjected to extreme thermal cycling, violent kinetic impacts, and corrosive atmospheric conditions. If the external chassis fails, the internal micro-electronics are instantly compromised. This deep-dive educational guide dissects the core manufacturing sciences—from the molecular selection of aluminum alloys and the precision of CNC turning, to the electrochemistry of Hard Anodizing. By understanding these industrial mechanics, procurement specialists may effectively navigate supply chain variables and source uncompromising duty-grade equipment.
[ Failure Analysis Report: The Die-Casting Fracture ]
To comprehend the necessity of advanced manufacturing, we must first examine the anatomy of failure. Recently, a maritime security firm submitted a batch of shattered flashlights to our laboratory. They had sourced these units from a budget supplier utilizing ADC12 High-Pressure Die Casting to accelerate production times and minimize costs.
Die casting involves injecting molten aluminum into a steel mold at high velocities. While highly efficient for complex shapes, this process inevitably traps microscopic atmospheric gases within the cooling metal, creating internal porosity (micro-voids). During a routine deck patrol, an officer dropped the flashlight. The kinetic shockwave propagated through the brittle, porous crystalline structure of the die-cast tail cap. The threaded section suffered a catastrophic shear fracture, instantly breaking the electrical ground path and ejecting the lithium-ion cell. This total system failure in a high-stress scenario illustrates why uncompromising CNC Machining from solid extruded billets is a mandatory requirement for duty-grade gear.
01. The Metallurgical Foundation: Aluminum Alloy Selection
The structural integrity and thermodynamic efficiency of a flashlight are dictated by its elemental composition. Manufacturers must meticulously select specific aluminum alloys based on the intended operational parameters of the device.
6061-T6: The Aerospace Standard
Alloyed with magnesium and silicon, and subjected to a T6 temper (solution heat treatment and artificial aging), 6061-T6 yields a tensile strength of approximately 276 MPa.
The Engineering Verdict: This alloy provides an exceptional equilibrium of mechanical strength, high thermal conductivity, and superior CNC machinability. Crucially, its elemental structure reacts flawlessly to electrochemical anodizing, producing a dense, uniform oxide layer. It is the absolute gold standard for premium tactical and EDC flashlights.
7075: The Aviation Titan
Alloyed primarily with zinc, 7075 delivers extreme yield strength exceeding 500 MPa, rivaling many structural steels. It is engineered to withstand monumental kinetic forces.
The Engineering Verdict: While structurally superior, 7075 presents severe manufacturing limitations. Its high zinc content aggressively wears down CNC cutting tools, escalating production costs. Furthermore, it exhibits poor anodizing coloration; achieving a deep, consistent matte black finish is notoriously difficult, often resulting in a splotchy, grayish aesthetic. We reserve 7075 strictly for specialized, extreme-environment custom orders.
ADC12 / DC-12: The Die-Casting Alloy
ADC12 features a high silicon content to increase the fluidity of the molten metal, allowing it to rapidly fill complex mold cavities. While highly efficient for mass-producing intricate geometries (such as thin cooling fins), it suffers from inherent porosity and extreme brittleness. A professional Tactical Flashlight Factory will categorically reject ADC12 for structural components.
02. Forming Processes: CNC Machining vs. Die Casting
The method by which raw aluminum is transformed into a flashlight chassis defines its ultimate optical and mechanical performance.
Computer Numerical Control (CNC) Turning & Milling
CNC machining is a subtractive process. A solid, extruded billet of 6061-T6 aluminum is loaded into a multi-axis lathe. Tungsten carbide cutting tools meticulously carve away the excess material. Because the metal is never melted, the original, highly aligned crystalline grain structure of the extruded aluminum remains perfectly intact, completely eliminating the risk of internal porosity.
Furthermore, advanced CNC turning centers maintain dimensional tolerances of up to ±0.01mm. This extreme precision ensures perfect concentricity (coaxiality). If the battery tube, LED pill, and reflector housing are not perfectly aligned on the same central axis, the optical beam will be distorted, resulting in a misaligned hotspot. CNC also allows for the cutting of highly precise trapezoidal threads, which are essential for compressing O-rings to achieve IP68 submersible waterproof ratings.
03. Surface Treatment Engineering: The Electrochemistry of HA III
Raw aluminum rapidly oxidizes in ambient air and is highly susceptible to galvanic corrosion and mechanical scratching. Prior to assembly, the CNC-machined chassis must undergo mechanical stress relief and extreme electrochemical passivation.
Mechanical Pre-Treatment: Tumbling and Brushing
Before chemical treatments begin, the freshly machined parts are placed in industrial vibratory tumblers filled with specialized ceramic or plastic abrasive media. This mechanical tumbling (滚磨) safely removes microscopic burrs left by the CNC cutting tools and relieves surface tension. Subsequent brushing or bead-blasting prepares the topography of the metal for optimal electrochemical adhesion.
Type III Hard Anodizing (HA III)
Anodizing is an electrolytic passivation process. The aluminum chassis is submerged in a sulfuric acid electrolyte bath and connected as the positive electrode (the anode). As a high-voltage direct current is applied, the surface of the aluminum reacts violently with oxygen, growing a highly structured, porous layer of aluminum oxide ($Al_2O_3$).
While standard Type II anodizing provides a thin cosmetic color layer, premium tactical gear requires Type III Hard Anodizing (HA III). Conducted at near-freezing temperatures with significantly higher voltages, HA III grows a much thicker (25 to 50 microns) and vastly denser $Al_2O_3$ crystalline layer. This layer achieves a hardness exceeding 60 Rockwell C. It provides extreme tactical-grade wear resistance, electrical insulation, and immunity to maritime salt-spray corrosion. Furthermore, specialized finishes, such as Physical Vapor Deposition (PVD), may be applied to titanium bezels or stainless steel pocket clips to enhance scratch resistance.
04. Electrical Path Optimization: End-Face Conduction
Herein lies a critical engineering contradiction: Aluminum is an excellent electrical conductor, but the aluminum oxide ($Al_2O_3$) generated during HA III anodizing is an exceptional dielectric insulator. If a flashlight's threads are fully anodized, electrical current cannot flow from the tail-cap ground back to the driver board.
Thread Conduction vs. End-Face Conduction
Budget flashlights solve this by leaving the threads completely bare (un-anodized). While this allows Thread Conduction, raw aluminum threads are soft. The constant friction of unscrewing the tail cap rapidly wears down the threads, creating microscopic aluminum dust that contaminates the O-ring seals, ultimately destroying the IP68 waterproof rating. Furthermore, threads provide a highly inconsistent surface area for electrical contact.
High-power flashlights, which often push 20A+ of current to the LED array, demand absolute electrical efficiency. A high-resistance contact point will generate severe parasitic heat according to Joule's first law ($P = I^2R$). To eliminate this, we engineer End-Face Conduction (端面导电). We anodize the threads to ensure extreme wear resistance, but utilize a secondary CNC milling operation to precisely shave the HA III oxide layer off the flat, circular end-face of the battery tube. This exposes a perfectly flat ring of highly conductive bare aluminum, ensuring zero-resistance contact with the tail-cap PCB, while allowing the user to slightly untwist the tail cap for a mechanical electrical lock-out.
How to Specify Manufacturing Standards in Your RFQ
When submitting a Request for Quotation (RFQ) to a potential manufacturing partner, semantic precision protects your brand liability. Utilize this checklist to enforce uncompromising engineering standards:
- [ ] Base Metallurgy: Specify "CNC Machined 6061-T6 Extruded Billet." Reject ambiguous terms like "Aluminum Alloy."
- [ ] Surface Passivation: Mandate "Mil-Spec HA III Hard Anodizing." Reject "Type II" or generic "Black Anodized" finishes.
- [ ] Ground Path Routing: Explicitly require "End-Face Conduction with Anodized Threads."
- [ ] Machining Tolerances: Stipulate "±0.01mm concentricity via 5-axis CNC."
06. Frequently Asked Questions (FAQ)
Q1: Can die-cast flashlights achieve an IP68 waterproof rating?
While technically possible initially, the internal micro-porosity of die-cast metal means that even minor kinetic impacts can create microscopic stress fractures over time, eventually compromising the O-ring seal and failing hydrostatic pressure tests.
Q2: Why do some HA III flashlights appear slightly gray or olive green instead of pure black?
True HA III anodizing grows a very thick, dense oxide layer that naturally possesses a dark grayish-green hue. Achieving a pure cosmetic black requires specific dye saturation parameters. A slight off-black tint on a 7075 or 6061-T6 body is often a visual indicator of an exceptionally thick, authentic hardcoat layer.
Q3: How does the T6 temper affect 6061 aluminum?
The T6 designation indicates that the raw 6061 aluminum has been solution heat-treated and then artificially aged in an oven. This alters the microscopic precipitation of magnesium and silicon within the alloy, drastically increasing its tensile yield strength.
Q4: What is PVD coating and where is it used?
Physical Vapor Deposition (PVD) involves vaporizing solid metals in a vacuum and depositing them onto the target surface. Because stainless steel and titanium cannot be traditionally anodized like aluminum, PVD is used to apply ultra-hard, decorative colored layers to strike bezels and pocket clips.
Q5: Can end-face conduction be applied to square threads?
Yes. The geometry of the thread (square, trapezoidal, or V-shaped) does not impact end-face conduction. The CNC milling strictly faces off the flat end of the cylinder barrel, remaining independent of the thread profile carved into the side walls.
