The Science of Flashlight Manufacturing: Packaging Engineering and ANSI FL1 Quality Control
The Science of Flashlight Manufacturing: Packaging Engineering and ANSI FL1 Quality Control
[ Abstract ]
The transition of a portable illumination device from a raw assembly of metallurgical and electronic components into a field-ready instrument requires rigorous scientific validation. The manufacturing lifecycle does not conclude at the assembly line; it extends through advanced packaging engineering and exhaustive metrological verification.
This technical white paper deconstructs the empirical physics governing modern flashlight production. By analyzing kinetic energy dissipation in packaging materials, the quantum mechanics of integrating sphere radiometry, and the fluid dynamics of hydrostatic pressure testing, this document outlines the stringent scientific methodologies utilized by an authentic ANSI FL1 standard flashlight factory to achieve absolute optical and structural reliability.
I. The Material Science of Packaging
Packaging is often erroneously viewed as mere commercial presentation. In optical engineering, packaging is a critical structural buffer designed to isolate highly calibrated internal components from external mechanical and atmospheric stress during global transit.
Kinetic Energy Dissipation
A flashlight's parabolic reflector and LED diode must maintain perfect coaxial alignment. A displacement of merely 0.1 millimeters due to a transit drop can permanently distort the focal point, ruining the beam profile. To prevent this, structural engineers utilize specific viscoelastic polymers for internal packaging.
Materials such as EPS (Expanded Polystyrene) and high-density PU (Polyurethane) foam are selected for their cellular matrices. When a shipping carton experiences a sudden deceleration (a drop), the kinetic energy ($E_k = \frac{1}{2}mv^2$) is transferred into the packaging. The closed-cell structure of the PU foam physically crushes, undergoing plastic deformation. This process actively absorbs and dissipates the kinetic energy as microscopic heat, effectively dampening the G-forces before they can reach the flashlight's delicate optical assembly.
Environmental Atmospheric Barriers
Maritime shipping exposes electronics to saline-heavy air and extreme humidity fluctuations, which can rapidly accelerate galvanic corrosion on exposed aluminum threads and degrade lithium-ion battery terminals.
To combat this, the exterior Corrugated Cardboard acts as a macroscopic structural barrier, absorbing external moisture. Internally, Blister Packs manufactured from thermoformed PVC (Polyvinyl Chloride) or PET (Polyethylene Terephthalate) create an impermeable micro-climate. These hydrophobic polymers possess incredibly low moisture vapor transmission rates (MVTR), sealing the flashlight in a dehydrated atmospheric envelope until the end-user breaches the packaging.
II. The Physics of ANSI/NEMA FL 1-2009 Standards
Prior to 2009, the portable lighting industry operated in an empirical vacuum. Manufacturers frequently published theoretical "emitter lumens" (the raw output of the LED chip directly from the data sheet) rather than "Out-The-Front" (OTF) lumens, ignoring the inevitable 15% to 30% photon loss caused by reflectors, AR-coated glass, and thermal throttling.
The ratification of the ANSI/NEMA FL 1-2009 Standard revolutionized the industry by transitioning performance claims from subjective marketing to rigorous, verifiable physics. It established standardized metrology for three critical optical metrics:
- Total Luminous Flux (Lumens): The total quantity of emitted light energy, measured between 30 and 120 seconds after activation to account for initial thermal voltage drop.
- Peak Beam Intensity (Candela): The maximum luminous intensity typically measured along the central axis of the beam. It measures how intensely focused the light is, strictly dictating the tool's piercing capability.
- Beam Distance (Meters): Calculated using the inverse square law of light ($E = \frac{I}{d^2}$). The standard defines beam distance as the exact radius at which the illuminance decays to 0.25 lux (approximately the illuminance of a full moon on a clear night).
III. Integrating Sphere Mechanics & Radiometry
To empirically measure Total Luminous Flux (Lumens) in accordance with ANSI standards, optical engineers employ a specialized radiometric instrument known as an Integrating Sphere (or Ulbricht sphere).
The Quantum Mechanics of Measurement
An integrating sphere is a hollow spherical cavity. Its interior is coated with an ultra-matte, highly diffuse reflective material—most commonly Barium Sulfate ($BaSO_4$). Barium sulfate is chosen for its near-perfect Lambertian reflectance, meaning it reflects photons uniformly in all directions, completely destroying the original spatial distribution of the light beam.
When a flashlight is inserted into the sphere and activated, the $BaSO_4$ coating scatters the emitted photons countless times across the internal surface. A baffled photodetector, shielded from the direct beam of the flashlight, measures the resulting uniform illuminance of the cavity wall. By mathematically integrating this isotropic light scattering, the computer can calculate the absolute Total Luminous Flux regardless of whether the flashlight is a tightly focused laser-like spot or a 180-degree wide floodlight. Simultaneously, spectrometers connected to the sphere analyze the wavelengths to verify exact CCT (Correlated Color Temperature) and CRI (Color Rendering Index) values.
IV. Environmental and Hydrostatic Testing Engineering
Optical precision is irrelevant if the housing cannot survive the physical realities of the field. Environmental testing simulates extreme thermodynamic and hydrostatic stress to validate the mechanical integrity of the instrument.
IPX Hydrostatic Pressure Testing
Water resistance is dictated by the physics of hydrostatic pressure ($P = \rho g h$). To achieve an IPX7 (1-meter) or IPX8 (2-meter) submersible rating, flashlights are placed inside pressurized hydrostatic chambers. The test analyzes the volumetric compression thresholds of the internal fluororubber O-rings and silicone grease seals. If the external water pressure exceeds the compression resistance of the elastomer, capillary action forces water past the threads, resulting in an instant electrical short of the driver board.

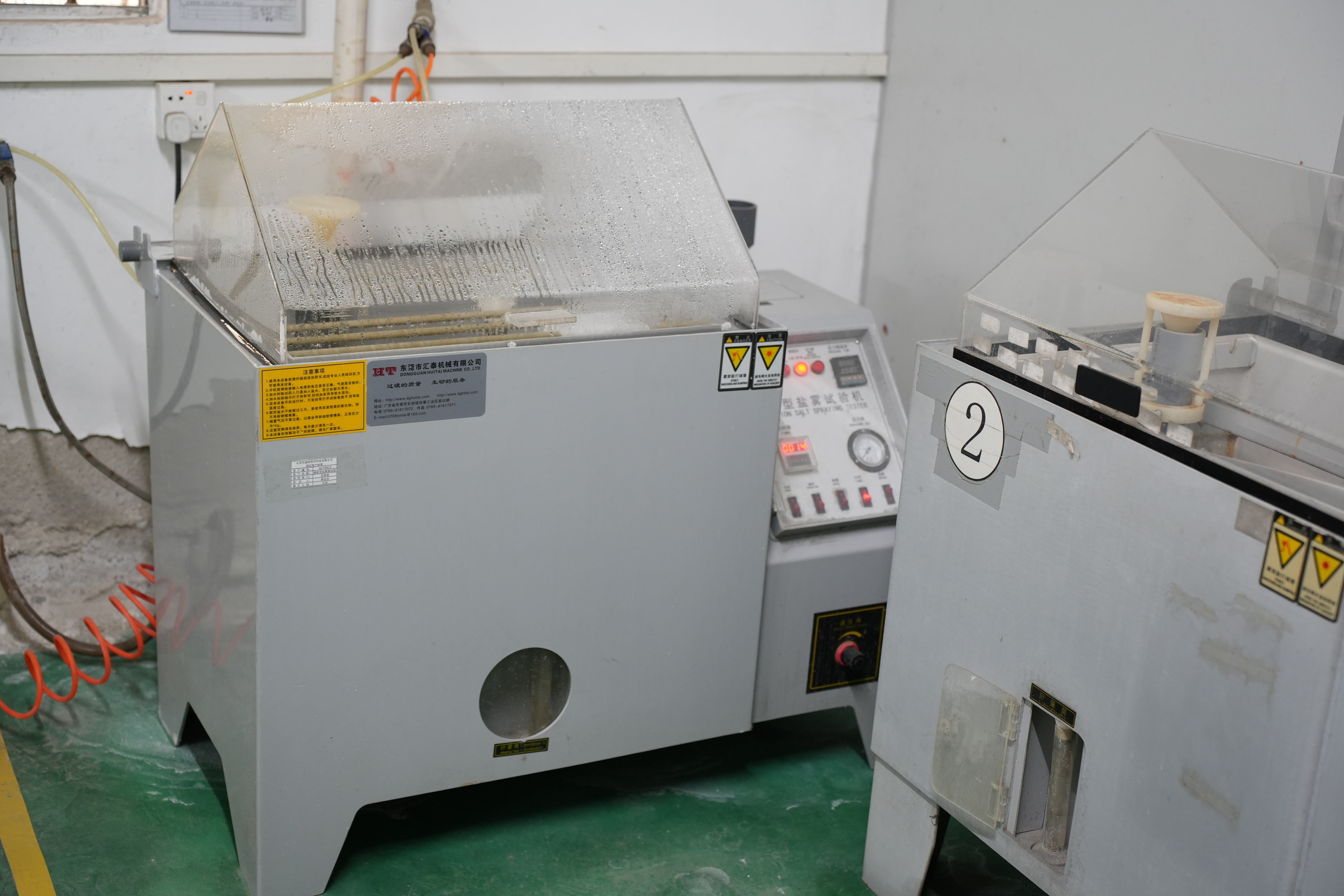

Salt Spray Chamber (Corrosion Chemistry)
To evaluate the chemical integrity of the Type III Hard Anodized (HA III) coating, aluminum bodies are subjected to accelerated corrosion testing. Placed inside a sealed chamber, they are continuously bombarded with a 5% Sodium Chloride ($NaCl$) atomized fog at exactly 35°C for up to 72 hours. This brutal chemical attack exposes any microscopic porosity in the $Al_2O_3$ oxide layer. If the anodic pores were not properly sealed during manufacturing, the saline solution will penetrate the layer, initiating rapid galvanic corrosion on the raw aluminum substrate beneath.
Drop Test Dynamics and Deceleration G-Forces
For Industrial Grade Headlamps utilized in mining and heavy construction, surviving a sudden 2-meter free-fall onto solid concrete is a mandatory baseline. The physics of the drop test focus on the extreme G-forces generated during instantaneous deceleration ($a = \frac{\Delta v}{\Delta t}$). To prevent the heavy lithium-ion battery from becoming a kinetic projectile that smashes the delicate driver board upon impact, dual-spring battery contacts are engineered to physically decouple the mass and absorb the shock. Furthermore, the PCB itself undergoes "potting" (encapsulation in epoxy resin) to prevent the micro-SMD components, such as the MCU, from violently shearing off their solder pads during the impact transient.
Conclusion: The Multidisciplinary Science of Illumination
The creation of a modern, high-performance flashlight is not a rudimentary assembly process; it is a profound exercise in multidisciplinary engineering. It demands the meticulous integration of quantum radiometry, fluid dynamics, metallurgical chemistry, and structural physics. The adherence to the ANSI/NEMA FL 1 standard, combined with advanced packaging engineering and destructive environmental testing, ensures that the theoretical limits of applied physics are safely translated into reliable, real-world utility.
