Engineering the T20: Insights from a Leading OEM Tactical Flashlight Manufacturer
[ Failure Analysis: Zero Tolerance for Failure ]
Hello, this is your Senior R&D Engineer from SHENGQI LIGHTING. Within the theaters of law enforcement patrol, high-risk security details, and extreme wilderness survival, environmental conditions are violently unpredictable. When an operator enters a light-deprived structure or navigates a flooded ravine, optical failure may precipitate fatal consequences.
A common hazard in municipal procurement involves sourcing commercial-grade illumination tools disguised as tactical equipment. These inferior products utilize unsealed bezels and brittle die-cast housings. During a kinetic engagement, a single drop onto concrete might shear the internal circuit board. A sudden torrential downpour could breach the lens, instantly short-circuiting the lithium battery. Furthermore, when beam penetration is lacking, adversaries may easily conceal themselves within the peripheral shadows.
To resolve these systemic vulnerabilities, procurement agencies must trace their supply chain directly to the source. Partnering with an elite OEM Tactical Flashlight Manufacturer guarantees that every instrument is engineered for survival from the molecular level upwards. This white paper deconstructs the T20—a purpose-built tactical device designed to neutralize operational friction and dominate the dark.
I. Optical Heart: The LUMINUS SST40 Array
True tactical superiority requires an overwhelming photonic output capable of breaching atmospheric interference and disorienting threats. The T20 achieves this via a highly calibrated optoelectronic core.

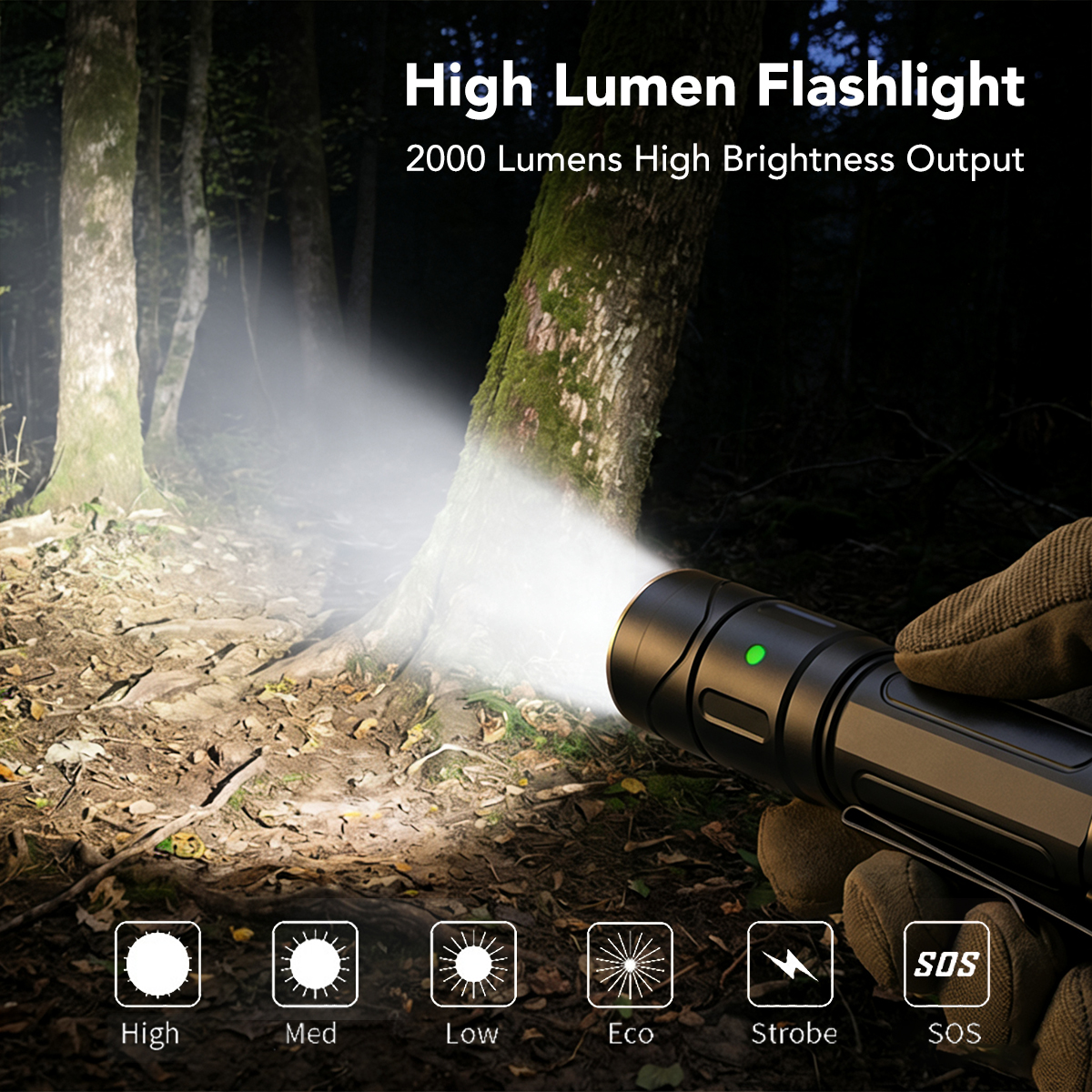

2000LM Maximum Suppression
The T20 is powered by the renowned LUMINUS SST40 LED, precisely binned at a cool-white 5500K color temperature. This specific spectrum maximizes visual contrast in dark environments. Driven by a low-resistance Constant Current (CC) circuit, the semiconductor detonates a blinding 2000 lumens (2000LM) in Turbo mode. Paired with a deep-dish parabolic reflector, it projects a highly concentrated beam up to 240 meters, allowing an operator to scan a warehouse perimeter from a safe standoff distance.
Instant Defensive Strobe
In close-quarters combat (CQC), time is measured in milliseconds. The T20 firmware features an Instant Defensive Strobe protocol. This mechanism oscillates the high-output beam at a disruptive frequency, inducing the Bucha effect (flicker vertigo). Firing this strobe directly into an adversary's eyes will immediately disrupt their spatial awareness and visual tracking, providing the officer a critical temporal advantage to escalate force or execute an arrest.
II. Absolute Defense: IP68 & Aerospace Aluminum
A tactical tool is a liability if its chassis cannot survive blunt force trauma or hydrostatic pressure. The T20 is encased in a structural envelope designed for extreme environmental immunity.
6063 Aluminum & Mil-Spec Anodizing
The T20 body is CNC-milled from a solid, extruded billet of 6063 aerospace aluminum alloy. Following the subtractive machining process, the metal is subjected to Type III Hard Anodizing. This electrochemical process grows a ceramic-like aluminum oxide layer, providing severe resistance to knife scratches, abrasive concrete, and saline corrosion. As an authoritative China Tactical Flashlight Factory, our 5-axis CNC machining ensures the physical walls are thick enough to guarantee verified 2-meter impact resistance, easily absorbing the kinetic shock of being dropped during a foot pursuit.

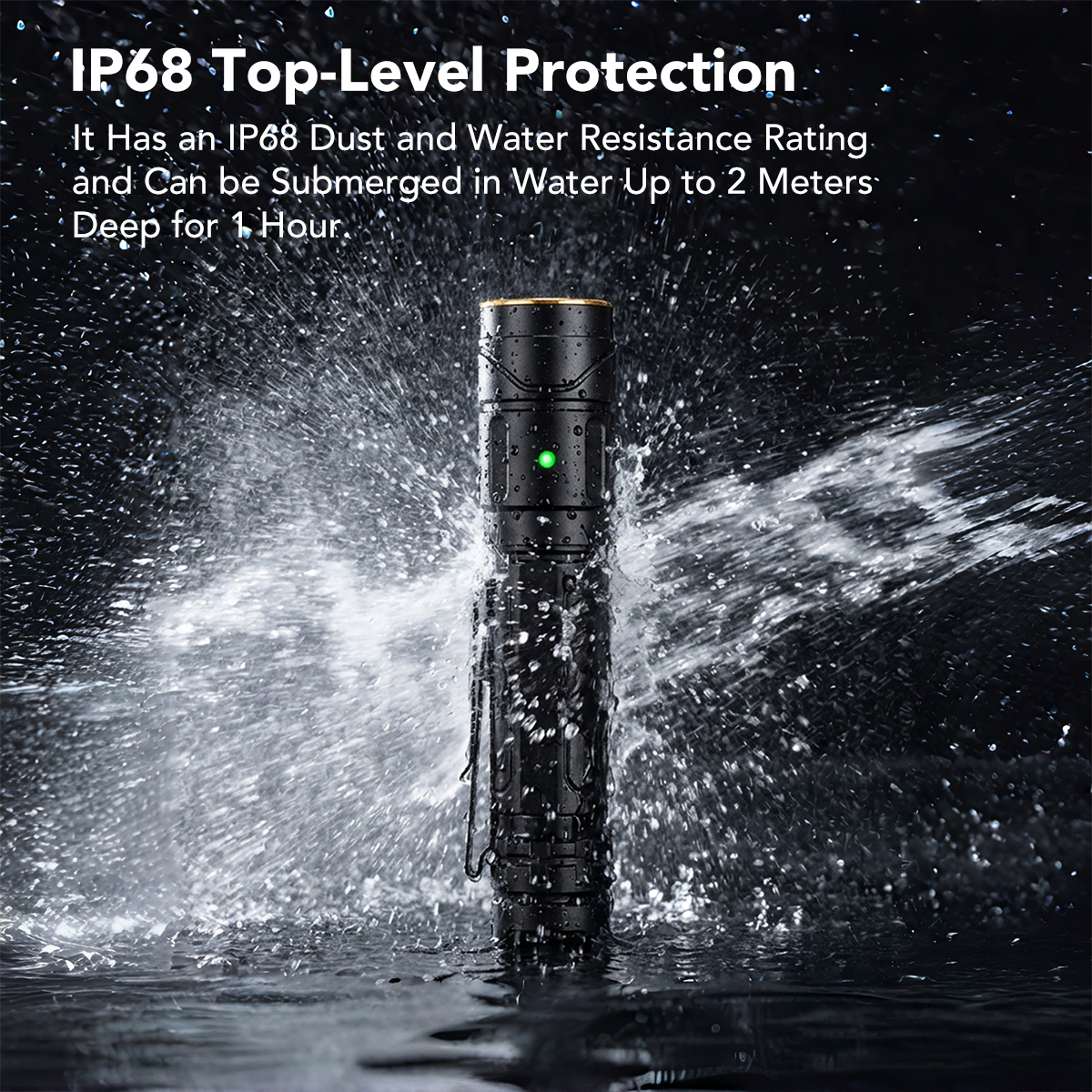

IP68 Submersible Sealing
Rain must not compromise operations. The T20 achieves a flawless IP68 waterproof rating. Through the integration of heavy-duty fluororubber O-rings and precision trapezoidal threading coated in dielectric grease, the internal circuitry is hermetically sealed. Independent laboratory testing confirms the T20 remains fully operational while completely submerged under 2 meters of water for 60 continuous minutes. It is not merely a flashlight; it is a vital maritime and storm-survival asset.
III. Power Management: 18650 Li-ion Endurance
A 2000-lumen output demands an immense, sustained electrical current. The T20 supports this requirement through highly optimized electrochemical integration, ensuring operators are never left stranded with a depleted power source during a crisis.
The 3100mAh Power Core
The T20 is powered by an included, high-density 18650 3100mAh rechargeable lithium-ion battery. The 18650 format was deliberately chosen by our engineers to maintain a slim, highly ergonomic 26mm body diameter, ensuring the T20 fits seamlessly into standard police duty holsters and weapon mounts.
The intelligent Microcontroller Unit (MCU) regulates power across 5 distinct illumination modes. When thermal limits approach during the 2000LM Turbo burst, the driver smoothly steps down to a highly stable 706LM High mode. This ensures the T20 delivers maximum visibility while simultaneously preserving the battery life required to complete a demanding 12-hour patrol shift.
IV. Expert FAQ: Partnering with an OEM Manufacturer
Q1: As a tactical brand owner, can we customize the T20's user interface (UI) or driver circuit?
Yes. As a highly capable Custom Tactical Flashlight Supplier, SHENGQI LIGHTING operates an independent electronic R&D division. We may rewrite the MCU firmware to match your exact operational protocols—such as ensuring the device always activates on High mode, modifying the strobe frequency, or altering the thermal step-down thresholds.
Q2: How are the IP68 waterproof rating and 2-meter impact resistance verified in your factory?
We do not rely on theoretical calculations. Every production batch is subjected to rigorous ANSI FL1 empirical testing within our advanced metrology laboratory. We utilize vacuum negative-pressure chambers to detect microscopic air leaks for the IP68 seal, and execute automated 2-meter, 6-axis drop tests onto solid concrete blocks to empirically validate the shock-absorbing PCB potting.
Q3: For large-scale military or police procurement, what guarantees your production capacity and lead times?
Scaling production requires massive infrastructure. As a globally recognized Heavy duty tactical flashlight supplier, we operate a 130,000 square-foot ISO9001-certified facility. Armed with 75 precision CNC machines and multiple dust-free assembly lines, we guarantee a consistent, zero-defect output, ensuring your large-scale government contracts are fulfilled strictly on schedule.
Secure Your Tactical Supply Chain
Equipping front-line personnel with unverified, commercially built flashlights invites catastrophic operational liability. The T20 is engineered from the circuit board up to dominate the darkest and most hostile environments on earth.
[ Initiation of OEM Procurement ]
We formally urge law enforcement procurement directors and tactical gear distributors to validate our engineering firsthand. Contact the SHENGQI LIGHTING R&D Division to request rigorous evaluation samples, wholesale pricing structures, and bespoke private-label integrations.
