Hello, this is your Senior Quality Control Engineer from SHENGQI LIGHTING. The global illumination market is currently experiencing a crisis of empirical truth. Online marketplaces are saturated with generic devices claiming "100,000 Lumens." However, when a law enforcement officer or industrial technician deploys these instruments in the field, reality sets in. The light might dramatically dim within two minutes due to severe thermal throttling. It may shatter upon a single drop onto concrete, or it could suffer a catastrophic short circuit the moment it encounters heavy rain.
This disconnect occurs because unverified manufacturers rely on theoretical emitter calculations rather than empirical metrology. Authentic Tactical Flashlight Quality Control and ANSI FL1 Standards represent the ultimate barrier against equipment failure. By subjecting hardware to strict, globally recognized physical testing, we strip away the marketing fluff. This technical guide explains exactly how professional illumination tools are measured, tortured, and certified for survival.
I. Decoding the ANSI/NEMA FL1 Core Metrics
The ANSI/NEMA FL1-2009 standard revolutionized the flashlight industry by forcing manufacturers to measure output objectively. Here is how our testing laboratory executes these precise optical calibrations.
Luminous Flux (Lumens)
We do not calculate lumens by reading the LED data sheet. We place the fully assembled flashlight inside an Integrating Sphere coated with Barium Sulfate ($BaSO_4$). This captures the total photonic energy emitted.
Crucially, the ANSI standard dictates that this measurement must be recorded between 30 and 120 seconds after the light is turned on. This prevents manufacturers from claiming a "cold start" peak that only lasts for two seconds before thermal throttling reduces the output.
Beam Distance & Candela
Peak Beam Intensity (Candela) measures how tightly the photons are concentrated. Beam Distance is physically calculated using the inverse-square law of light.
Under the FL1 standard, the maximum beam distance is defined as the exact radius at which the light intensity decays to 0.25 lux. For context, 0.25 lux is empirically equivalent to the illumination provided by a full moon on a clear night. This guarantees the operator can effectively identify a target at the stated distance.
Run Time (Endurance)
Unregulated flashlights will slowly fade to black over many hours. To provide a definitive metric, the ANSI standard strictly defines Run Time as the continuous duration it takes for the light output to drop to exactly 10% of its initial 30-second measurement. This provides a realistic benchmark of how long the instrument will remain tactically viable in the field.

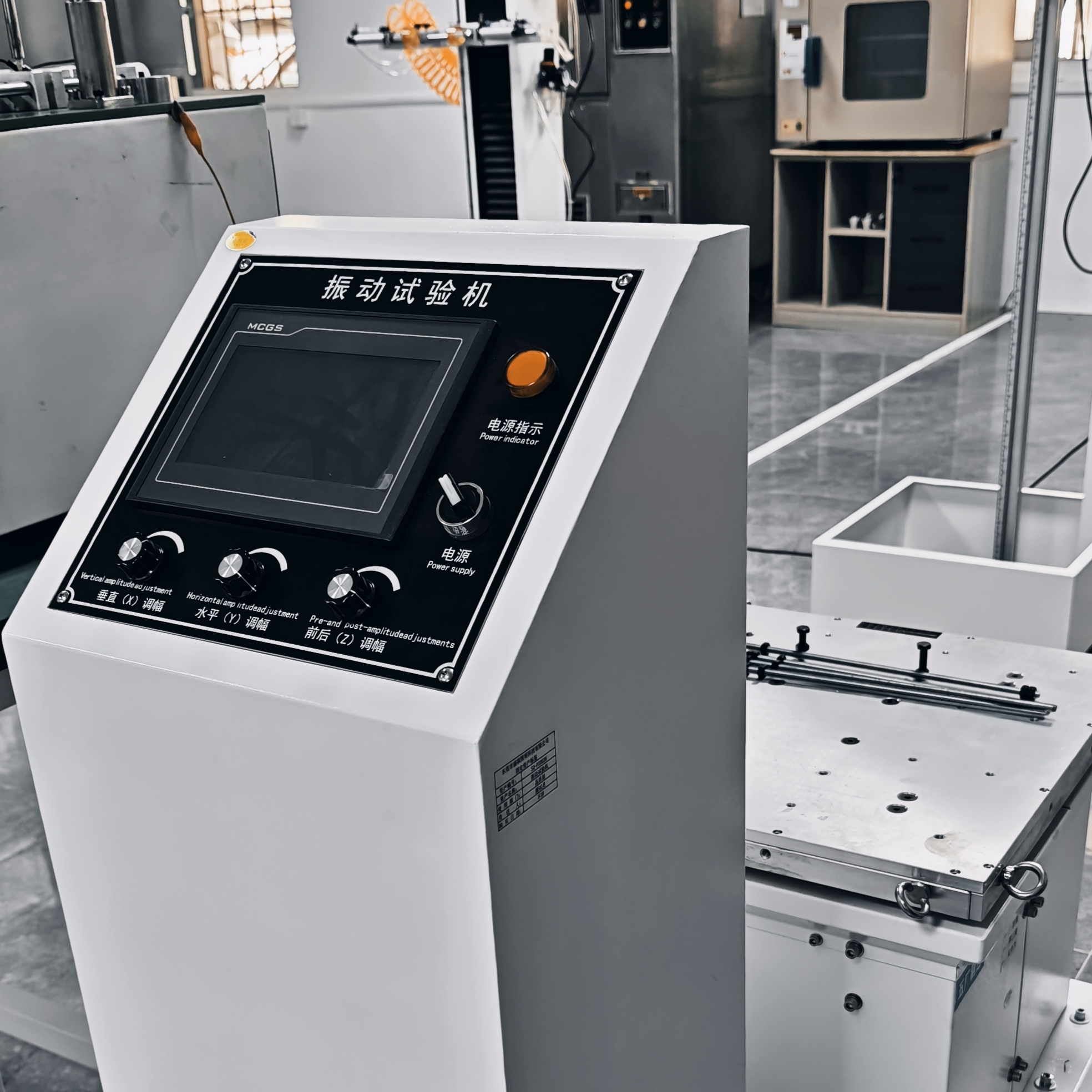

II. The Torture Chamber: Reliability Testing
A flashlight is only as strong as its weakest internal solder joint or rubber gasket. Our laboratory physically destroys prototypes to establish uncompromising baseline tolerances for mass production.
Impact Resistance Kinematics
During the impact test, a fully assembled flashlight (with batteries installed) is dropped from a height of 1 meter (or 2 meters for mil-spec models) directly onto solid concrete. It is dropped sequentially on all six orientation axes. To pass, the device must suffer zero functional impairment—no shattered lenses, no flickering, and no breached seals.
To survive this extreme deceleration, we utilize dual-spring battery contacts to decouple the kinetic mass of the lithium-ion cell, and we encapsulate the internal PCB in shock-absorbing epoxy (potting).
Hydrostatic Waterproof Engineering (IPX Ratings)
The IP (Ingress Protection) scale dictates water resistance. An IPX4 rating indicates resistance to splashing water. An IPX8 rating mandates that the device can survive continuous submersion beyond 1 meter (often 2 meters for 60 minutes).
We validate IPX8 ratings using vacuum negative pressure leak testing. By placing the empty aluminum chassis in an airtight chamber and drawing a vacuum, highly sensitive barometric sensors can detect microscopic air leaks escaping past the fluororubber O-rings. As a premier OEM CNC machined aluminum flashlight factory, we rely on micron-level CNC tolerances to ensure perfect O-ring compression. This absolute precision is why global brands depend on our Aerospace aluminum flashlight wholesale capabilities to mitigate their hydrostatic liability.
III. Safety, Compliance, and Component Lifespan
Beyond basic optics, a professional tool must not endanger the operator. Thermal dynamics and environmental corrosion are heavily scrutinized in our quality control matrix.
Thermal Rise & Salt Spray Resistance
High-drain devices generate immense heat. During the Thermal Rise Test, thermocouples are attached to the exterior housing to ensure the Advanced Temperature Regulation (ATR) limits surface heat to safe thresholds, preventing operator burns and internal battery degradation.
Simultaneously, maritime tools must survive harsh saline environments. We utilize a Salt Spray Test, bombarding the aluminum chassis with a 5% NaCl atomized fog at 35°C. This guarantees our Type III Hard Anodizing lacks microscopic porosity, completely shielding the substrate from aggressive galvanic corrosion.
Switch Fatigue & ISO9001 Authority
The tactical tail switch is the most critical mechanical interface. To guarantee decades of reliability, pneumatic robotics execute automated Switch Life Tests, repeatedly depressing the mechanism tens of thousands of times to verify spring resilience and electrical contact consistency. As a leading Industrial grade flashlight manufacturer China relies upon, and a proven Heavy duty tactical flashlight supplier, our ISO9001 certified protocols ensure that every unit rolling off our assembly line will survive the brutality of its intended theater.
IV. Expert FAQ: Sourcing Reliable Flashlights
Q1: Why might two flashlights, both accurately rated at 2000 Lumens, appear to have completely different brightness levels outdoors?
Lumens measure the total volume of light emitted, but not how it is distributed. A flashlight with an Orange Peel (OP) reflector spreads those 2000 lumens widely, resulting in lower peak Candela and a massive, soft floodlight. A flashlight with a deep, Smooth (SMO) reflector concentrates those same 2000 lumens into a tight center hotspot. The SMO light will have a vastly higher Candela rating, allowing it to throw the beam hundreds of meters further, making it appear much "brighter" on a distant target.
Q2: How does SHENGQI guarantee IPX8 waterproof consistency during mass production?
Consistency requires extreme automation. We execute assembly across 11 dust-free manufacturing lines to prevent debris from compromising the O-ring seals. Furthermore, we do not rely solely on batch sampling; we mandate a 100% pneumatic negative-pressure leak test on the assembly line, ensuring every single chassis is hermetically sealed before it is boxed.
Q3: As a premium brand, can we request third-party ANSI FL1 testing reports for our OEM models?
Absolutely. While our internal metrology laboratory is fully equipped with integrating spheres and environmental chambers to conduct in-house ANSI FL1 certification, we actively support and collaborate with recognized third-party auditing firms (such as SGS or TÜV) to provide our B2B partners with independent, verifiable certification documents.
